Galvanized Steel Strand ASTM A475
Share With:
Description
Galvanized Steel Strand
Product Description
Galvanized steel strand, it is ommonly called stay wire or guy strand. which is lay stranded conductors made of zinc-coated Steel wires.
Specification:
Material: high carbon steel
Galvanized steel wire size: Φ1.44mm-4.770mm

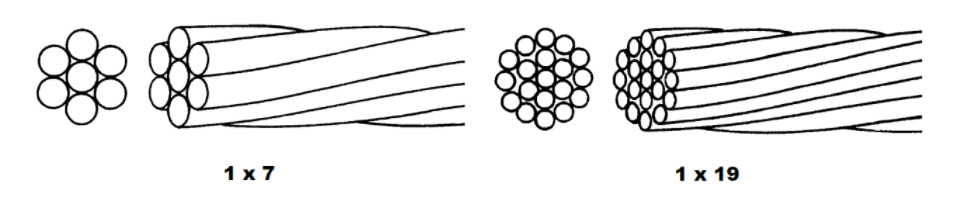

Strand size:7×（1.44-4.2 mm）;19×（1.44-3.5mm）;37×（1.44-3.5mm）
Tensile strength: different Grade from min.1470 N/mm2 to min.1960N/mm2

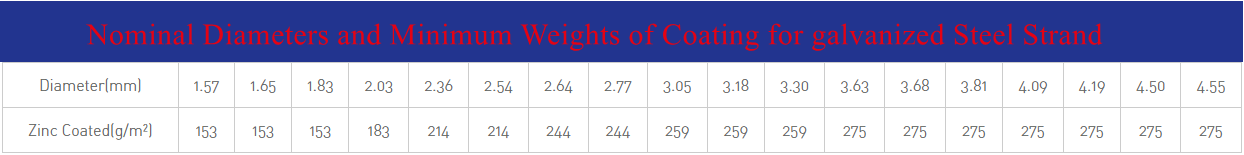

Zinc coating: According to ASTM A475 Class A
Meets ASTM Specifications A475 or A363 or ASTM B498 or BS EN 50189
ISO management system certification:ISO9001,ISO14001
Galvanized Steel Strand

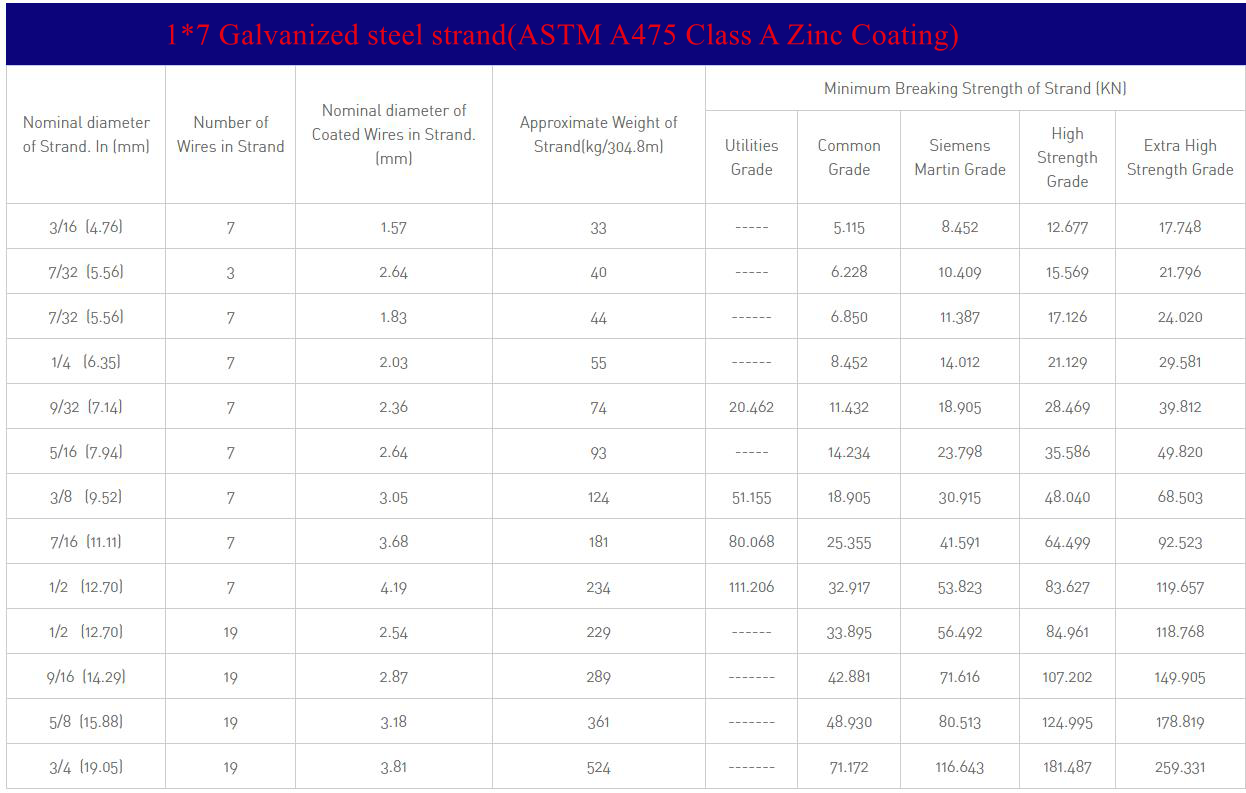

ASTM A475 – This specification covers the five grades of class A zinc-coated steel wire strand, Utilities, Common, Siemens-Martin, High-Strength, and Extra High-Strength, suitable for use as guy and messenger wires.
CAN/CSA G12-2014 – This specification describes galvanized strand suitable for use as guys, suspension strand,and overhead ground wire strand. Included are requirements for Grades 800, 1100, 1300, and 1500 (grade 110, 160, 180, and 220).
Our raw material is high quality carbon steel hot rolled wire rod according to the standard GB/T4354-2008 .

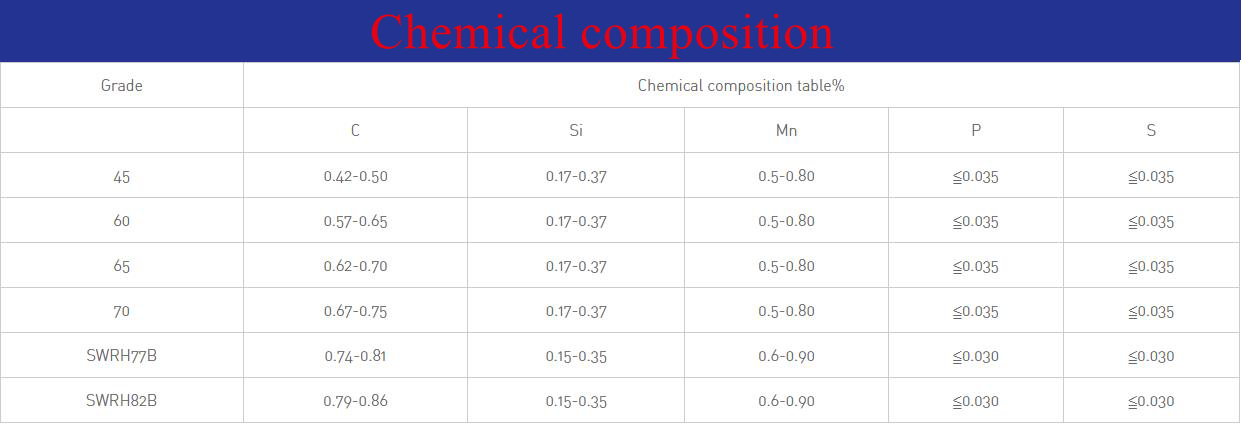

The chemical composition of the steel conforms to the GB/T699-1999 standard.
parameter
Packing

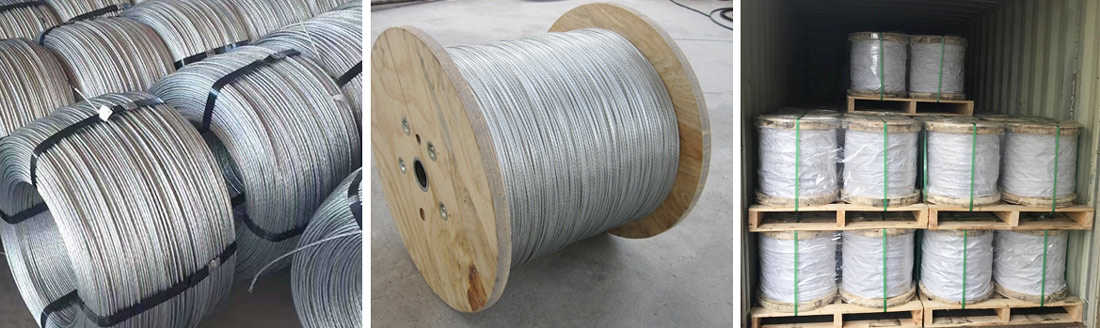

The galvanized stee strand wire is packing in wooden drums with length 1000m-6000m for each reel, The diameter of the wooden drums 400-1200mm.
Our Factory
HengMing Metal is the supplier of many famous cable companies, and we have supplied for the Chinese government's power transmission from west to east and other large national projects.
Application
Galvanized steel strand usually used in power cable ,messenger wire, guy wire, stay wire,ACSR conductor core wire，earth wire/ ground wire, overhead earth wire，
Hengming Metal products Co,.Ltd is a professional galvanized steel wire strand manufacturer, which mainly produce 1x7/1x19steel strand.
