Oil Tempered Chromium Silicon Wire
Share With:
Description
Chrome Silicon Alloy spring wire accroding to ASTM A401 Standard is used for springs resistant to set when used at moderately elevated temperatures, such as clutch spring, suspension spring , shock absorbers spring in automotive. It is similar to the grade FDSiCr(referenced in EN 10270-2).
Chrome Silicon Alloy spring wire/Chrome Silicon Vanadium Alloy Valve spring wire according to ASTM A877 Standard covers the highest quality of round and shaped chromium-silicon and chromium-silicon-vanadium alloys of steel valve spring wire, uniform in quality and temper, intended for the manufacture of valve springs and other springs requiring high-fatigue properties when used at moderately elevated temperatures. It is similar to the grade VDSiCr /TDSiCr,VDSiCr V/TDSiCr V(referenced in EN 10270-2) intended for high fatigue levels. This wire shall be either in the annealed and cold-drawn or quenched and tempered condition as specified by purchaser.
1.Steel grade: VDSiCr /TDSiCr,VDSiCr V/TDSiCr V
2.Size: 0.5-18mm
3.Application:

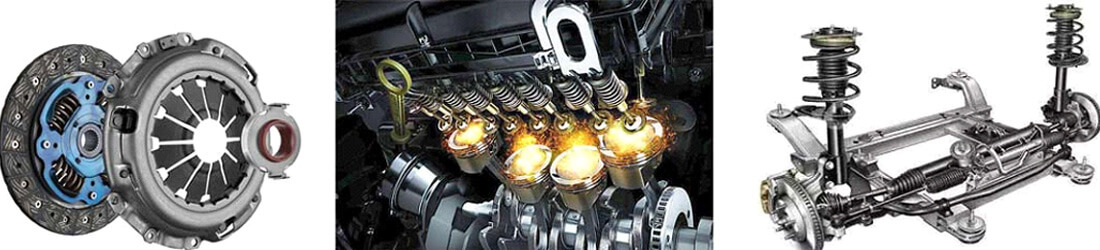

ASTM A401 ：Clutch spring, suspension spring , shock absorbers spring in automotive.
ASTM A877 ：High fatigue spring, Valve spring
4.Package: Packing in coils by plastic film inside and plastic-woven strip outside.
5.Standard:ASTM A877, ASTM A401, EN10270-2
Chemical Composition (mass fraction) %
| Code | C | Si | Mn | P max. | S max. | Cr | V | Cu max. |
| FDC |
0.60-0.75 |
0.10-0.35 |
0.50-1.20 |
0.030 | 0.030 | | | 0.20 |
| TDC | 0.020 | 0.025 | 0.12 | |||||
| VDC | ||||||||
| FDSiMn | 0.56-0.64 | 1.50-2.00 | 0.60-0.90 | 0.035 | 0.035 | | | 0.25 |
| TDSiMn | ||||||||
| FDCrSi |
0.5-0.6 |
1.20-1.60 |
0.50-0.90 |
0.030 | 0.030 |
0.50-0.80 |
| 0.20 |
| TDCrSi | 0.025 | 0.025 | 0.12 | |||||
| VDCrSi |
Mechanical and technological properties and quality requirments for wire grades FDC, FDCrV, FDSiCr and FDSiCrV
| Nominal wire diameter | Permissible deviations | Tensile strength Rm /MPa | |||
| /mm | /mm | FDCb | FDCrVb | FDSiCrb | FDSiCrVb |
|
0.80 |
±0.015 | 1860-2060 | 1960-2160 | 2100-2300 | 2280-2430 |
|
1.00 |
±0.020 | 1810-2010 | 1900-2100 | 2070-2260 | 2280-2430 |
|
1.30 |
1790-1970 | 1870-2070 | 2060-2250 | 2260-2410 | |
|
1.40 |
1760-1940 | 1840-2030 | 2040-2220 | 2260-2410 | |
|
1.60 |
±0.025 | 1720-1890 | 1790-1970 | 2000-2180 | 2210-2360 |
|
2.00 |
1670-1820 | 1750-1900 | 1970-2140 | 2160-2310 | |
|
2.50 |
1640-1790 | 1720-1870 | 1950-2120 | 2110-2260 | |
|
2.70 |
±0.030 |
1620-1770 | 1700-1850 | 1930-2100 | 2110-2260 |
|
3.00 |
1600-1750 | 1680-1830 | 1910-2080 | 2110-2260 | |
|
3.20 |
1580-1730 | 1660-1810 | 1900-2060 | 2110-2260 | |
|
3.50 |
1550-1700 | 1620-1770 | 1870-2030 | 2060-2210 | |
|
4.00 |
±0.035 |
1540-1690 | 1610-1760 | 1860-2020 | 2060-2210 |
|
4.20 |
1520-1670 | 1590-1740 | 1850-2000 | 2060-2210 | |
|
4.50 |
1510-1660 | 1580-1730 | 1840-1990 | 2010-2160 | |
|
4.70 |
1500-1650 | 1560-1710 | 1830-1980 | 2010-2160 | |
|
5.00 |
1470-1620 | 1540-1690 | 1800-1950 | 2010-2160 | |
|
5.60 |
±0.040 |
1460-1610 | 1520-1670 | 1780-1930 | 1960-2110 |
|
6.00 |
1440-1590 | 1510-1660 | 1760-1910 | 1960-2110 | |
|
6.50 |
1430-1580 | 1500-1650 | 1740-1890 | 1960-2110 | |
|
7.00 |
±0.045 | 1400-1550 | 1480-1630 | 1710-1860 | 1910-2050 |
|
8.00 |
1380-1530 | 1470-1620 | 1700-1850 | 1890-2030 | |
|
8.50 |
±0.050 | 1360-1510 | 1450-1600 | 1660-1810 | 1870-2010 |
|
10.00 |
±0.070 | 1320-1470 | 1430-1580 | 1620-1770 | 1830-1970 |
|
12.00 |
±0.080 | 1280-1430 | 1420-1570 | 1580-1730 | 1790-1930 |
|
14.00 |
1270-1420 | 1410-1560 | 1570-1720 | 1780-1920 | |
|
15.00 |
±0.090 | 1250-1400 | 1400-1550 | 1550-1700 | 1760-1900 |
| b 1 Mpa =1 N/mm2 | |||||
Advantages：
*Can be customized as customer's requirement
*High tensile strength spring wire
*The surface is smooth and flawless
*The production line has passed the environmental assessment
*More than fifteen years of working experience
*More than 200 customers trust
parameter
Surface: Surface rust-proof oil,Superclean,shaved
Profession：We own eight professional engineers in the high strength steel wire field.
QC：The company has strict QC to keep the products high quality.
Reputation : We have been getting good reputation for over 20 years in the oversea marketing
Next we introduce the products details as follows:
1.Steel grade: TDCrSi VDCrSi FDCrSi ,VD CrSiVa,55CrSi, 54SiCr6,SAE9254, SAE9254VHV,60Si2Mn
2.Size: 0.7mm-16mm
3.Usage: For making screw springs,railway springs,OTMB springs and so on
4.Package: Waterproof membrane + PVC +steel truss or depends on customer's requirment
5.Standard: Technical agreemer it.
6.Wire rod process flow:Bllets RHF-Water descaling-Rolling Laying head Conti ol cooling Finishing,Packing,Warehousing.
Packing & Delivery
Packing Details: Packed by plastic inside and woven or bag outside
Delivery Details : about 7-10 days after payment
