Flat Wire & Shaped Wire
Share With:
Description
Flat Wire & Shaped spring steel wire is rolled from a round wire through a series of rolling and annealing operations. Larger cross sections may be die drawn to size. Custom profile wire from HengMing offers the manufacturer a near-net product that requires fewer secondary processes by providing a preformed shape close to, or exactly to, the finished dimensional requirements.Flat Wire & Shaped Wire& Square wire mainly used for diesel engine valve spring, spark plug gasket spring, automobile body accessories: automobile soft shaft, glass lifter, wiper, seat regulator, piston ring and so on.
Production process includes prefabricated mold, rolling, lead hardening, two rolling, special-shaped die drawing, hardening, tempering and other process steps.
Flat & shaped wire &Square wire size and range
Cross section shape：Square,Rectangle, trapezoid, arc edge
Ｗidth: 16mm max
Thickness: 1.0mm mix
Material: carbon wire and alloy wire (70# carbon steel, 65Si2Mn, 50CrVA, 65Mn, 1Crl8Ni9 and more)

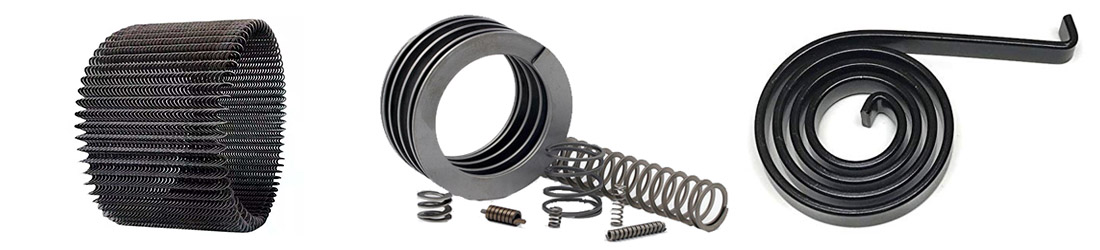

Flat wire & shaped wire application:
*For glass lifters and seat adjusters
*The trap, the door lock, the slider
*wiper
*For internal combustion engine clasp and piston ring
*Combined oil ring for internal combustion engine
| Wire status | Hardness | Tensile strength | Appication |
| Cold rolling | 34~36HRC | 1250~1300Mpa | Gate lock spring，retaining ring，door slider |
| Annealing | 35~38HRC | 1350~1400Mpa | Car seat border spring，window regulator spring |
| Oil tmepered | 40~42HRC | 1500~1800Mpa | internal combustion，wiper spring |
parameter
Flat Wire & Shaped Wire usually working under the alternating stress, and the common failure mode is fatigue failure. Therefore, alloy spring steel wire must have high yield point, elastic limit and fatigue resistance, so as to ensure that the spring has sufficient elastic deformation capacity and can withstand large loads. At the same time, the steel spring wire also requires a certain degree of plasticity and toughness, a certain degree of hardenability, not easy to decarburize and not easy to overheat. Some special springs also require heat resistance, corrosion resistance, or stable elasticity over long periods of time.High tensile strength spring wire 60Si2Mn and 55CrSi and other alloy steel wire is our feature products.Get more from the customer service.
